摘要: 一、背景前段时间，LZ的boss突然给了出了这样一个需求：将原项目中的所有文章关联的附件TXT、PDF、office相关文件全部以flash的形式在网页上进行展示，便于预览。看似简单的需求，整个研发小组都懵逼的。LZ也没办法 ...

一、背景

前段时间，LZ的boss突然给了出了这样一个需求：将原项目中的所有文章关联的附件TXT、PDF、office相关文件全部以flash的形式在网页上进行展示，便于预览。看似简单的需求，整个研发小组都懵逼的。LZ也没办法只好Google一把，找了好几套解决方案，基本上是调第三方软件的API，像什么flashpaper、print2flash等等。LZ先试了flashpaper，反正是各种问题，不支持64位系统什么的；print2flash在版本4以前也是很多问题，dll调用失败，dll缺失。最终，LZ在官网下载了最新的版本（商业软件，收费的），用起来还是相对来说比较稳定，至今没出现问题。提供的API还是比较丰富的，本篇LZ主要介绍java和.NET的操作。

二、print2flash安装

这里LZ为了简单实验主要介绍破解版的安装（费了好大的力才找到的），如果商用，还是给钱找别人买吧。

1）下载print2flash4.如果想使用服务器模式，大概需要600刀，也不是很贵。官网地址http://print2flash.com/

2）运行print2flashsetup.exe一直下一步就OK。

3）下载补丁文件。共3个文件p2fServer.exe，print2f4.exe，Print2FlashPrinter4.dll；如果之前已设置了windows服务方式启动，则先需要停止Print2Flash4服务；拷贝p2fServer.exe、print2f4.exe到安装目标文件夹替换原文件，拷贝Print2FlashPrinter4.dll到以下文件夹替换原始文件：C:\Windows\System32\spool\drivers\x64\以及C:\Windows\System32\spool\drivers\x64\3\

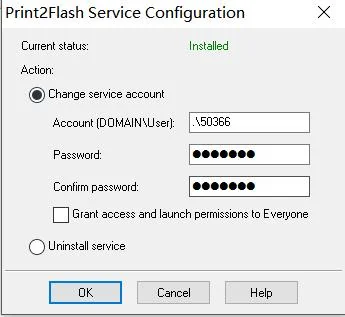

4）注册print2flash4服务。运行print2flash，options->print2flash service configuration,输入Windows密码，没有的话就不用输，勾选Grant access and launch pemmissions to Everyone给EveryOne用户授予权限。点击OK，如果提示successful，Current status显示Installed表示安装成功。

5）开启print2flash4服务。安装成功后，在windows服务中可以找到print2flash服务。启动该服务。

三、java操作API

开始前我们需要将print2flash提供的SDK中的P2FConst.java引入：

  1 public class P2FConst
  2 {
  3     // 枚举常量
  4     public static final int MSEXCEL = 0x00000001;
  5     public static final int MSWORD = 0x00000002;
  6     public static final int MSPOWERPOINT = 0x00000004;
  7     public static final int ACROBAT = 0x00000008;
  8
  9
 10     public static final int JPEG = 1;
 11     public static final int PNG = 2;
 12
 13
 14     public static final int STRETCH = 1;
 15     public static final int TILE = 2;
 16
 17
 18     public static final int INTLOGO = 0x00000001;
 19     public static final int INTDRAG = 0x00000002;
 20     public static final int INTSELTEXT = 0x00000004;
 21     public static final int INTZOOMSLIDER = 0x00000008;
 22     public static final int INTZOOMBOX = 0x00000010;
 23     public static final int INTFITWIDTH = 0x00000020;
 24     public static final int INTFITPAGE = 0x00000040;
 25     public static final int INTPREVPAGE = 0x00000080;
 26     public static final int INTGOTOPAGE = 0x00000100;
 27     public static final int INTNEXTPAGE = 0x00000200;
 28     public static final int INTSEARCHBOX = 0x00000400;
 29     public static final int INTSEARCHBUT = 0x00000800;
 30     public static final int INTROTATE = 0x00001000;
 31     public static final int INTPRINT = 0x00002000;
 32     public static final int INTNEWWIND = 0x00004000;
 33     public static final int INTHELP = 0x00008000;
 34     public static final int INTBACKBUTTON = 0x00030000;
 35     public static final int INTBACKBUTTONAUTO = 0x00010000;
 36     public static final int INTFORWARDBUTTON = 0x000C0000;
 37     public static final int INTFORWARDBUTTONAUTO = 0x00040000;
 38     public static final int INTFULLSCREEN = 0x00300000;
 39     public static final int INTFULLSCREENAUTO = 0x00100000;
 40
 41
 42     // METADATAPORMAT enumeration constants
 43     public static final int XML = 1;
 44     public static final int TEXT = 2;
 45
 46     // OUTPUTFORMAT enumeration constants
 47     public static final int SINGLEFILE = 1;
 48     public static final int SINGLEFILEPERPAGE = 2;
 49     public static final int EXTVIEWER = 4;
 50
 51     // PAPER_ORIENTATION enumeration constants
 52     public static final int ORIENT_PORTRAIT = 1;
 53     public static final int ORIENT_LANDSCAPE = 2;
 54
 55     // PROTECTION_OPTION enumeration constants
 56     public static final int PROTDISPRINT = 0x00000001;
 57     public static final int PROTDISTEXTCOPY = 0x00000002;
 58     public static final int PROTENAPI = 0x00000004;
 59
 60     // ThreeStateFlag enumeration constants
 61     public static final int TSF_NO = 0;
 62     public static final int TSF_YES = 1;
 63     public static final int TSF_AUTO = 2;
 64
 65     // TOOLBARIMAGE enumeration constants
 66     public static final int IMGLOGO = 1;
 67     public static final int IMGDRAG = 2;
 68     public static final int IMGSELTEXT = 3;
 69     public static final int IMGZOOMRULER = 4;
 70     public static final int IMGZOOMFOCUSNADLE = 5;
 71     public static final int IMGZOOMNADLE = 6;
 72     public static final int IMGFITWIDTH = 7;
 73     public static final int IMGFITPAGE = 8;
 74     public static final int IMGPREVPAGE = 9;
 75     public static final int IMGNEXTPAGE = 10;
 76     public static final int IMGSEARCHBUT = 11;
 77     public static final int IMGROTATE = 12;
 78     public static final int IMGPRINT = 13;
 79     public static final int IMGNEWWIND = 14;
 80     public static final int IMGHELP = 15;
 81     public static final int IMGMORE = 16;
 82     public static final int IMGTOOLBARBGR = 17;
 83     public static final int IMGBACK = 18;
 84     public static final int IMGFORWARD = 19;
 85     public static final int IMGFULLSCREEN = 20;
 86     public static final int IMGEXITFULLSCREEN = 21;
 87
 88     // TEMPLATETYPE enumeration constants
 89     public static final int TEMPLATE_CUSTOM = 1;
 90     public static final int TEMPLATE_ACTIONSCRIPT2 = 2;
 91     public static final int TEMPLATE_ACTIONSCRIPT3 = 3;
 92
 93     // WATERMARKANCHOR enumeration constants
 94     public static final int CENTER = 0;
 95     public static final int LEFTCENTER = 1;
 96     public static final int RIGHTCENTER = 2;
 97     public static final int TOPCENTER = 16;
 98     public static final int BOTTOMCENTER = 32;
 99     public static final int LEFTTOP = 17;
100     public static final int RIGHTTOP = 18;
101     public static final int LEFTBOTTOM = 33;
102     public static final int RIGHTBOTTOM = 34;
103
104     // COMPRESSION_METHOD enumeration constants
105     public static final int COMPRESSION_METHOD_ZLIB = 0;
106     public static final int COMPRESSION_METHOD_LZMA = 1;
107
108     // DOCUMENT_TYPE Enumeration constants
109     public static final int FLASH = 1;
110     public static final int HTML5 = 2;
111
112     // BROWSER_TYPE Enumeration public static final intants
113     public static final int INTERNET_EXPLORER =   1;
114     public static final int FIREFOX = 2;
115     public static final int CHROME = 4;
116     public static final int OPERA = 8;
117     public static final int SAFARI = 16;
118
119     // POWERPOINT_PRINTOUTPUT Enumeration constants
120     public static final int POWERPOINT_PRINTOUTPUT_AUTO = 0;
121     public static final int POWERPOINT_PRINTOUTPUT_Slides = 1;
122     public static final int POWERPOINT_PRINTOUTPUT_TwoSlideHandouts =    2;
123     public static final int POWERPOINT_PRINTOUTPUT_ThreeSlideHandouts =    3;
124     public static final int POWERPOINT_PRINTOUTPUT_SixSlideHandouts    =    4;
125     public static final int POWERPOINT_PRINTOUTPUT_NotesPages =         5;
126     public static final int POWERPOINT_PRINTOUTPUT_Outline =        6;
127     public static final int POWERPOINT_PRINTOUTPUT_BuildSlides =        7;
128     public static final int POWERPOINT_PRINTOUTPUT_FourSlideHandouts =    8;
129     public static final int POWERPOINT_PRINTOUTPUT_NineSlideHandouts =    9;
130     public static final int POWERPOINT_PRINTOUTPUT_OneSlideHandouts    =    10;
131 }

开始转换Test.java类：

 1 package print2flash;
 2
 3 import java.io.IOException;
 4
 5 import com.jacob.activeX.*;
 6 import com.jacob.com.*;
 7
 8 public class Test {
 9
10     public static void main(String[] args) throws IOException {
11         try {
12 ComThread.InitSTA;//com组件管理，用来初始化com线程，释放线程
13 ActiveXComponent p2f = new ActiveXComponent("Print2Flash4.Server");//创建print2flash的一个应用，调用print2flash服务
14 //设置属性值，可根据自己需求修改
15 ActiveXComponent defProfile = new ActiveXComponent(p2f.getProperty("DefaultProfile").toDispatch);
16 defProfile.setProperty("InterfaceOptions", P2FConst.INTLOGO | P2FConst.INTZOOMSLIDER | P2FConst.INTPREVPAGE
17 | P2FConst.INTGOTOPAGE | P2FConst.INTNEXTPAGE);
18 defProfile.setProperty("ProtectionOptions", P2FConst.PROTDISPRINT | P2FConst.PROTENAPI);
19 defProfile.setProperty("DocumentType", P2FConst.FLASH | P2FConst.HTML5);
20 p2f.invoke("ConvertFile", "E:/print2flashTest/test.doc");//方法调用
21 System.out.println("转换成功！");
22         } catch (Exception e) {
23 System.out.println("转换异常: " + e.toString);
24         } finally {
25  ComThread.Release;
26         }
27     }
28 }

注意：这里涉及到java应用调用windows的COM组件，需要用到jacob，没有的同学，可以用LZ提供的链接地址下载（文章最后会一起附上）。

1）将jacob.jar build path。

2）将jacob-1.16-M1-x64.dll（根据自己系统情况选择）复制到jre/bin目录（如果没有该dll，会抛出找不到ComThread类异常）

接下来LZ准备一个test.doc，来进行测试:

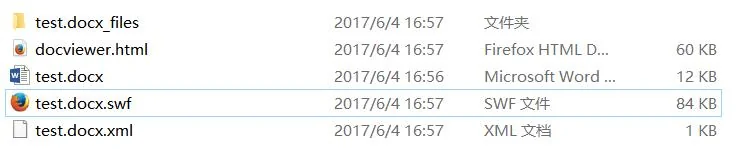

test.docx.swf即为生成的flash文件，可嵌入到你需要的网页中。

四、.NET操作API

.NET的操作相对来说就简单得多了，LZ这里也是只做一个简单的win32控制台演示：

1）首先新建win32控制台应用程序，增加程序集Interop.Print2Flash4.dll。

2）在Proogram.cs中写具体业务逻辑：

 1 using System;
 2 using System.Collections.Generic;
 3 using System.IO;
 4 using System.Linq;
 5 using System.Text;
 6
 7 namespace Test
 8 {
 9     class Program
10     {
11         static void Main(string[] args)
12         {
13 string fs_filename = System.AppDomain.CurrentDomain.BaseDirectory+"/print2flashTest/test.docx";
14 string fs_convertedfilename = System.AppDomain.CurrentDomain.BaseDirectory+"/print2flashTest/swf/test.swf";
15 Print2Flash4.Server2 p2fServer = new Print2Flash4.Server2;//创建print2flash对象
16 //设置参数值，可以参考官网SDK文档
17 p2fServer.ConvertFile(fs_filename, fs_convertedfilename, null, null, null);
18         }
19     }
20 }

运行结果与java一样。官网SDK还提供了ASP、PHP等脚本语言的操作API，有情趣的同学可以自己尝试一下。
